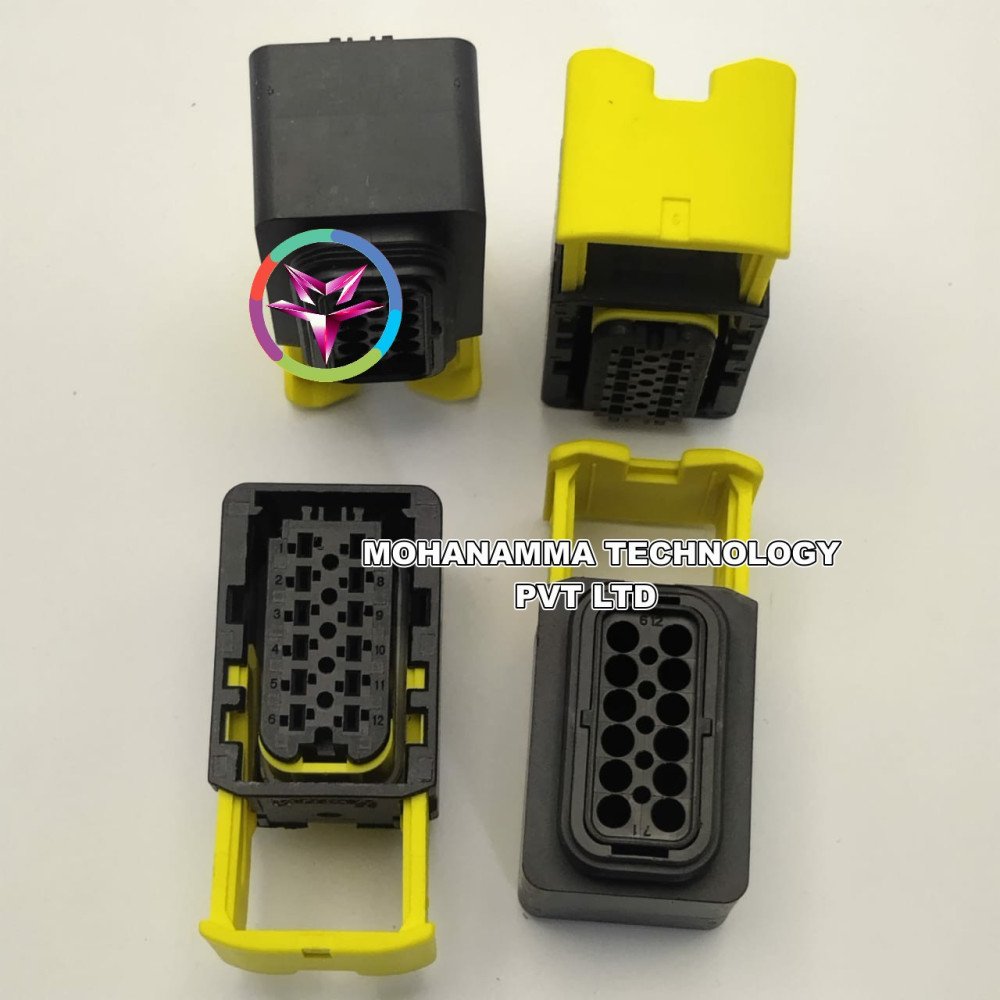

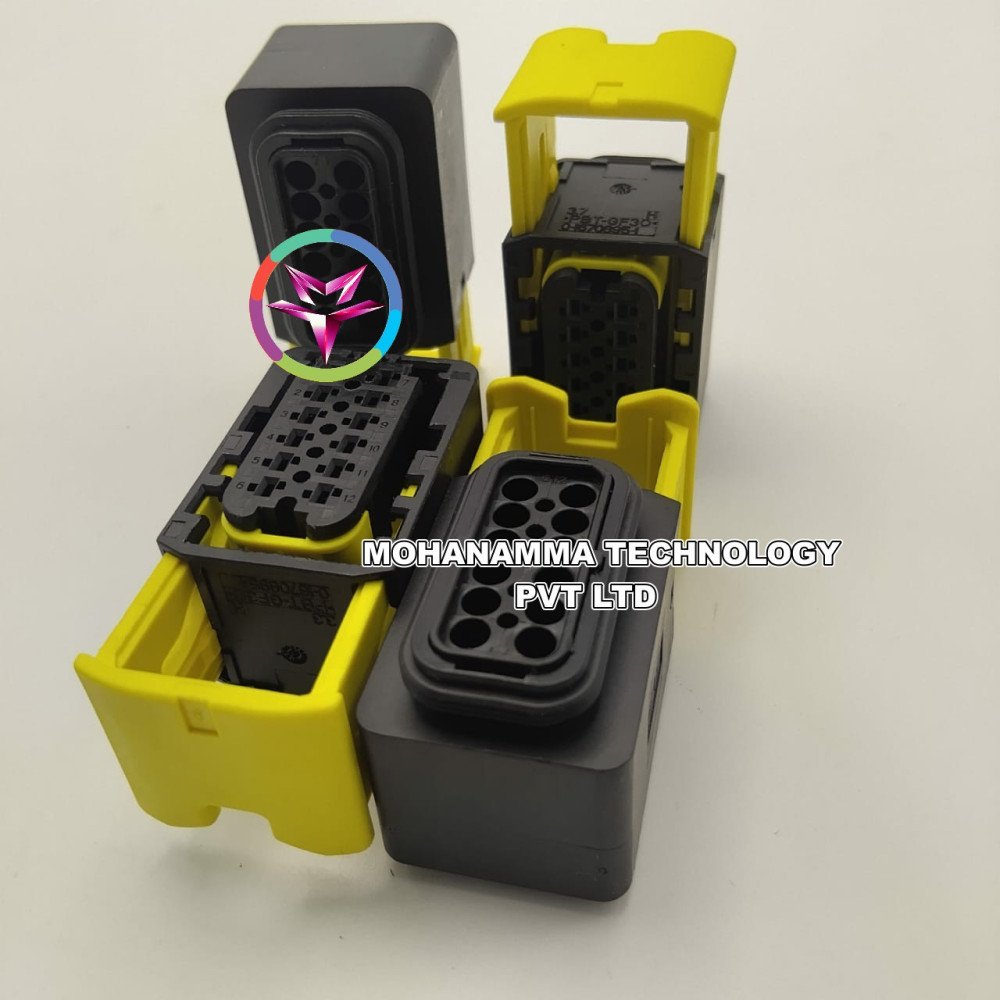

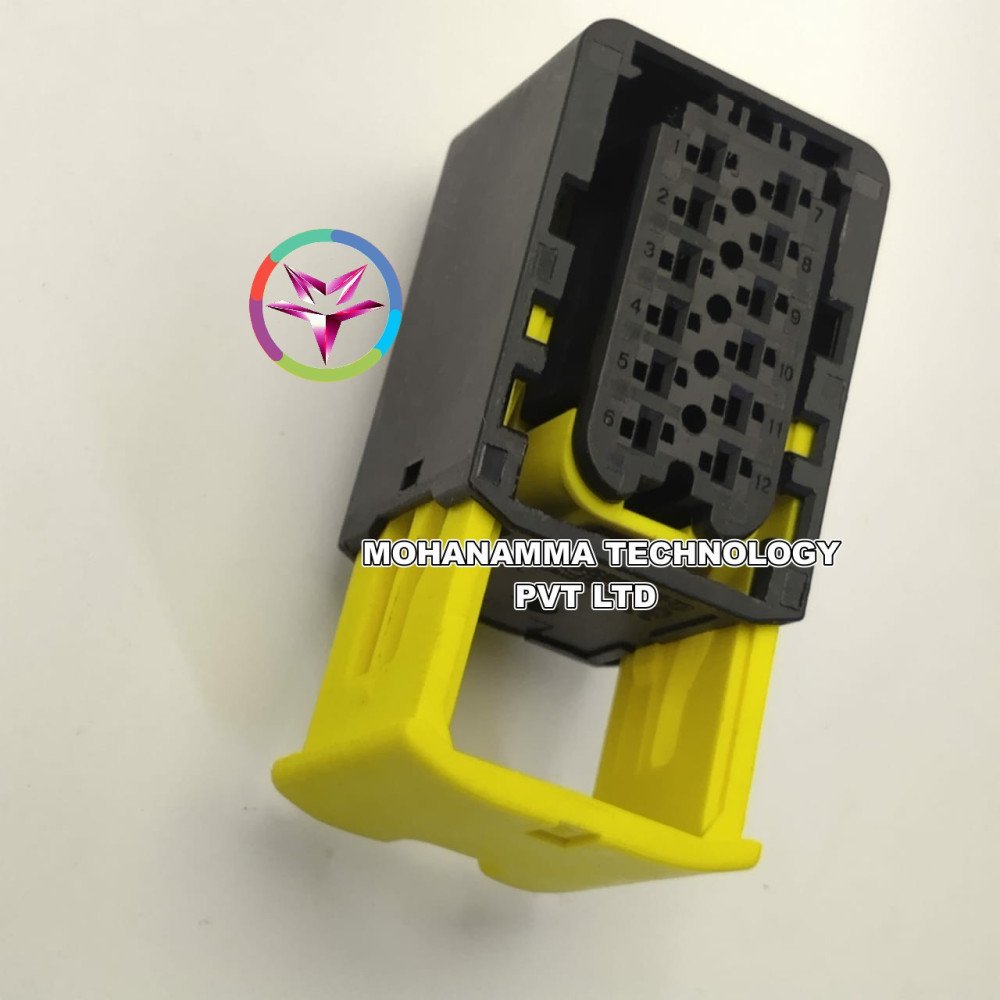

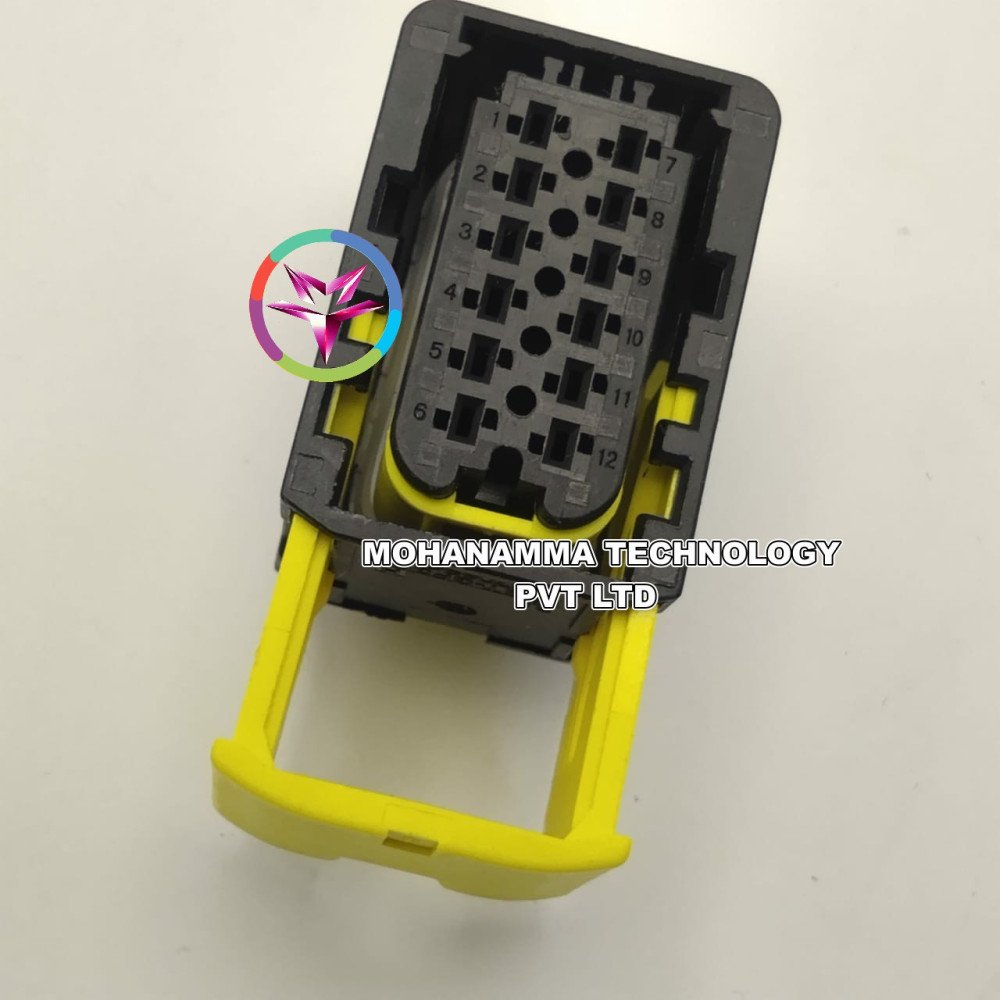

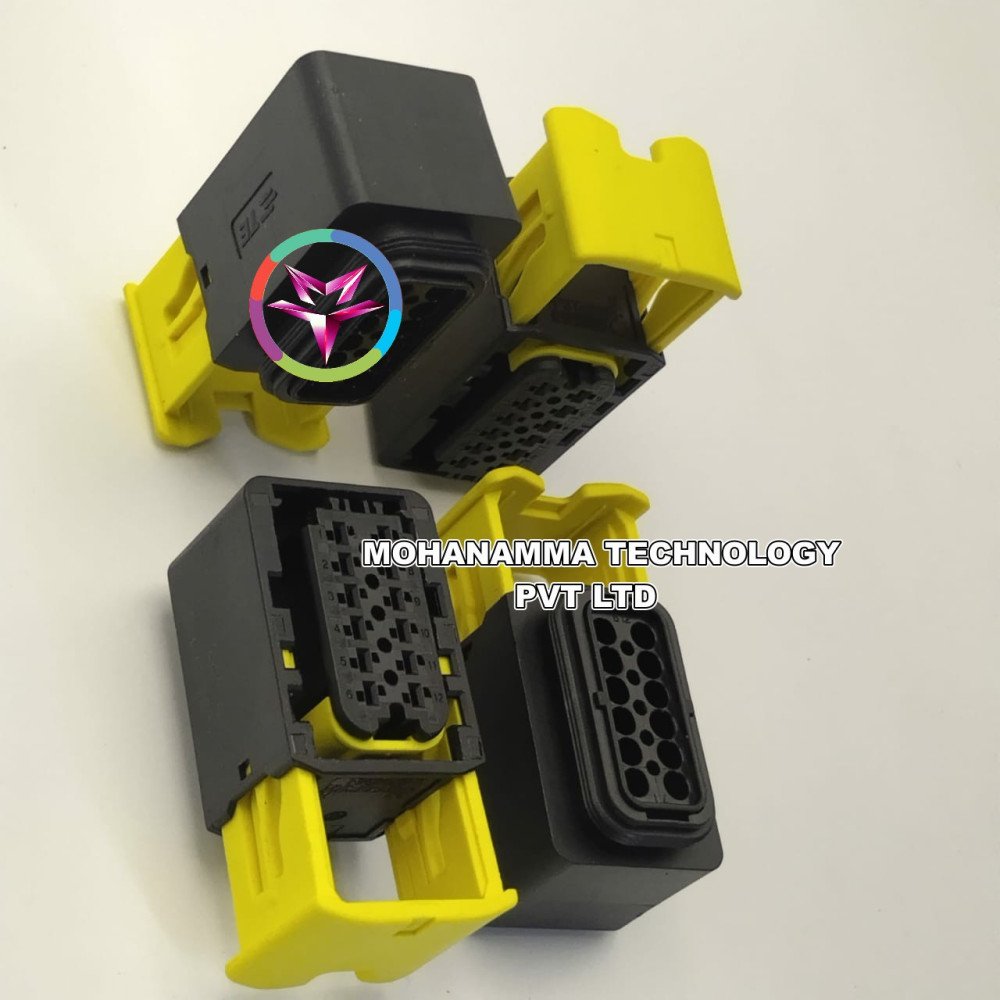

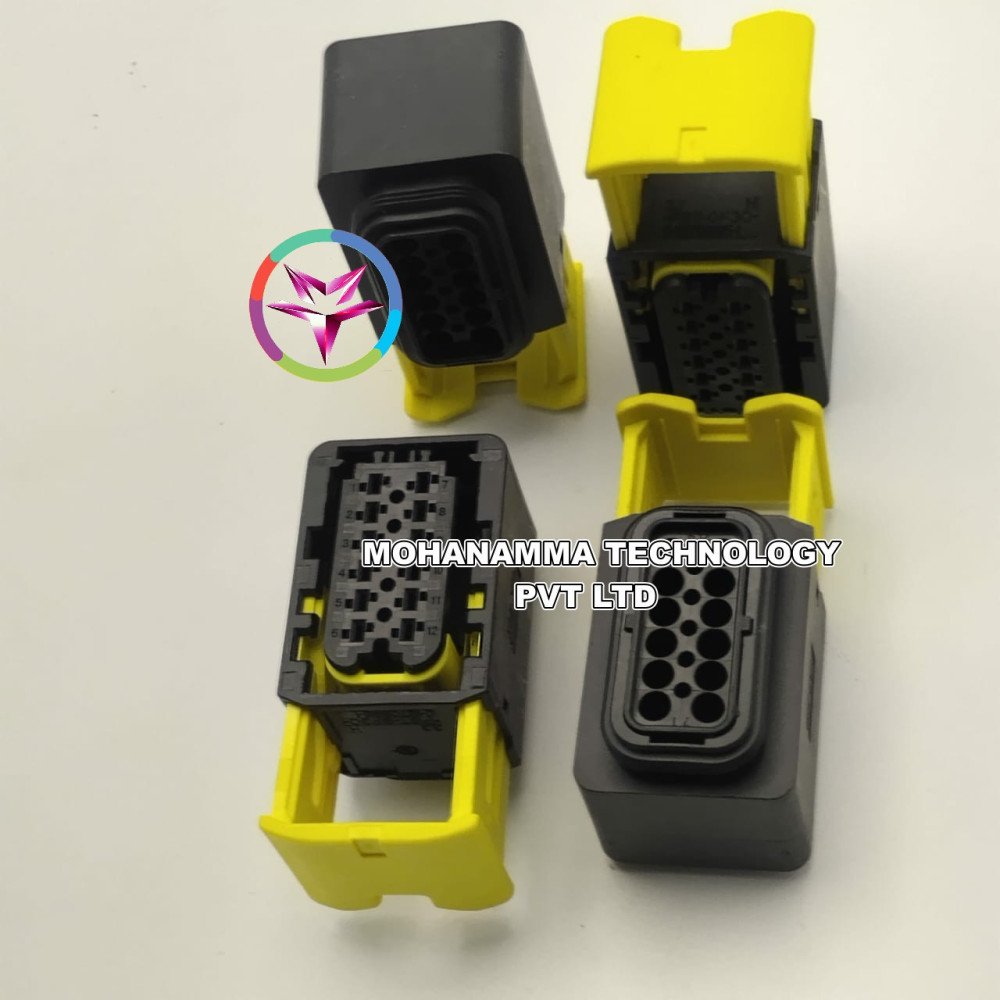

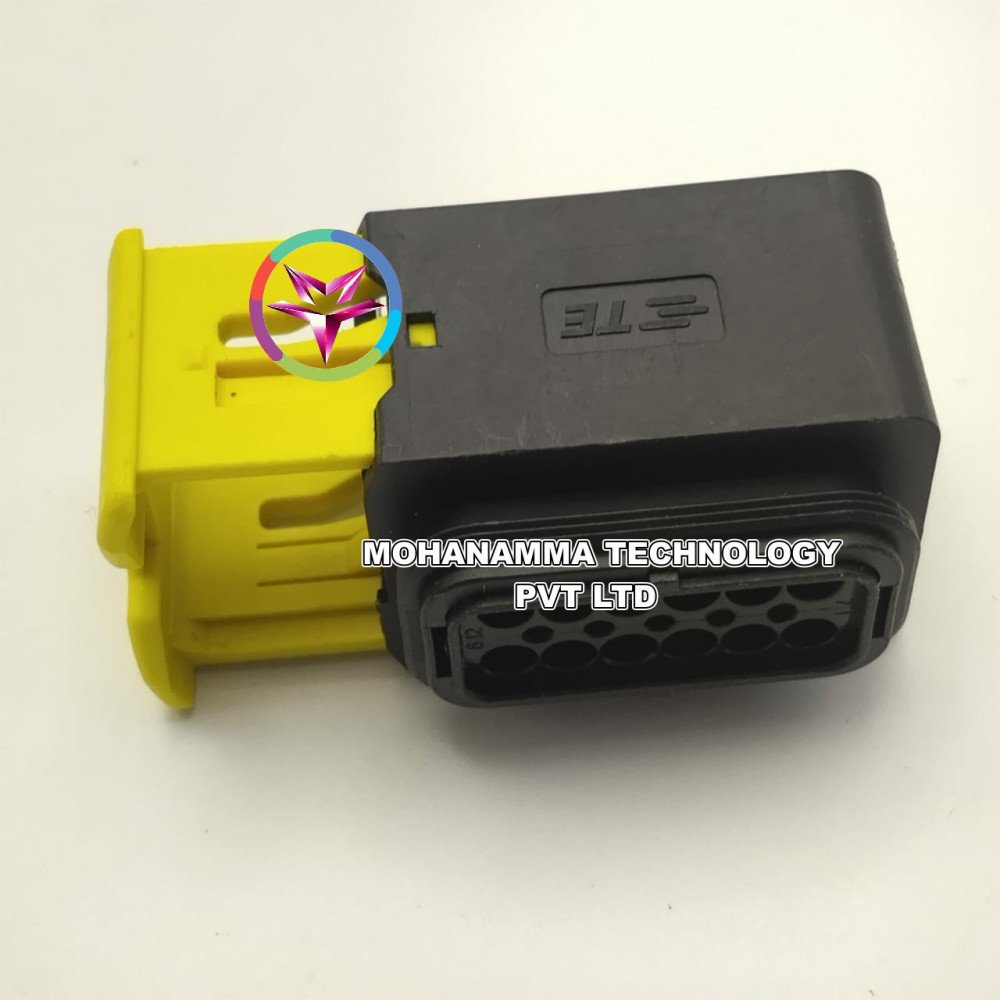

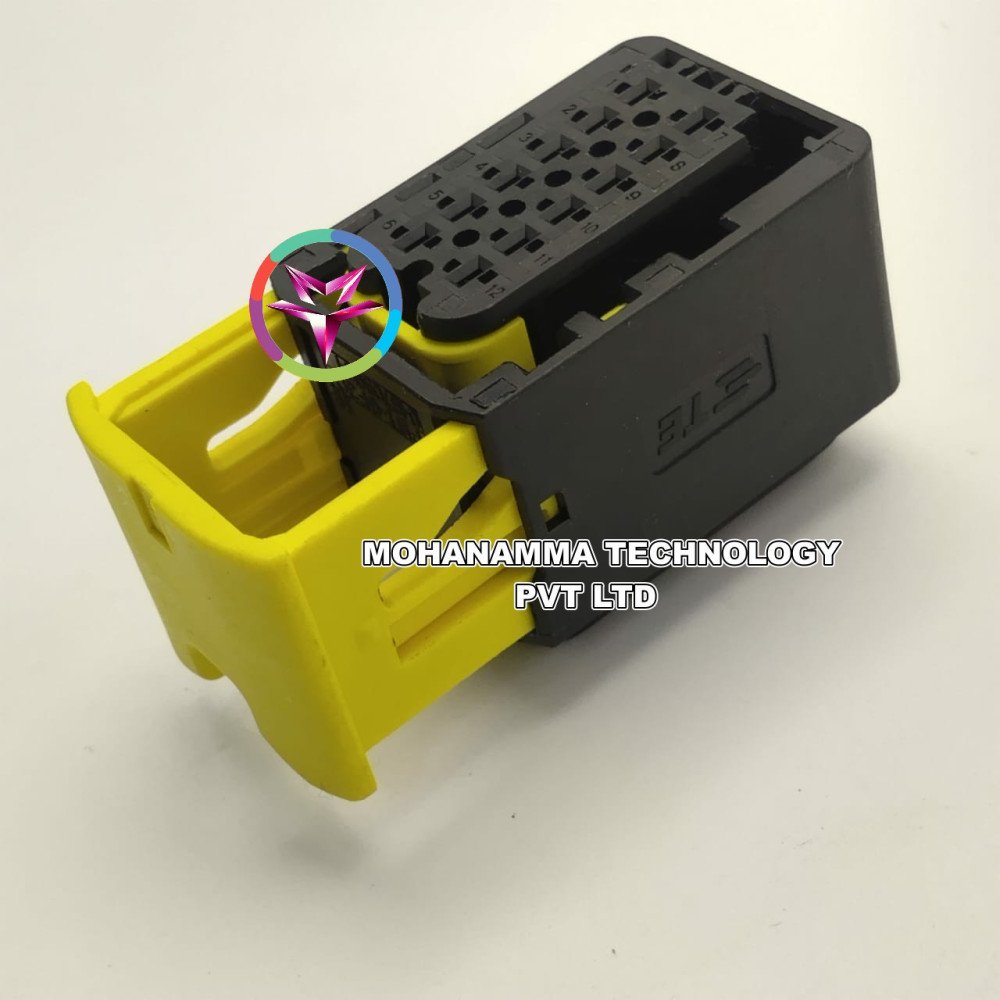

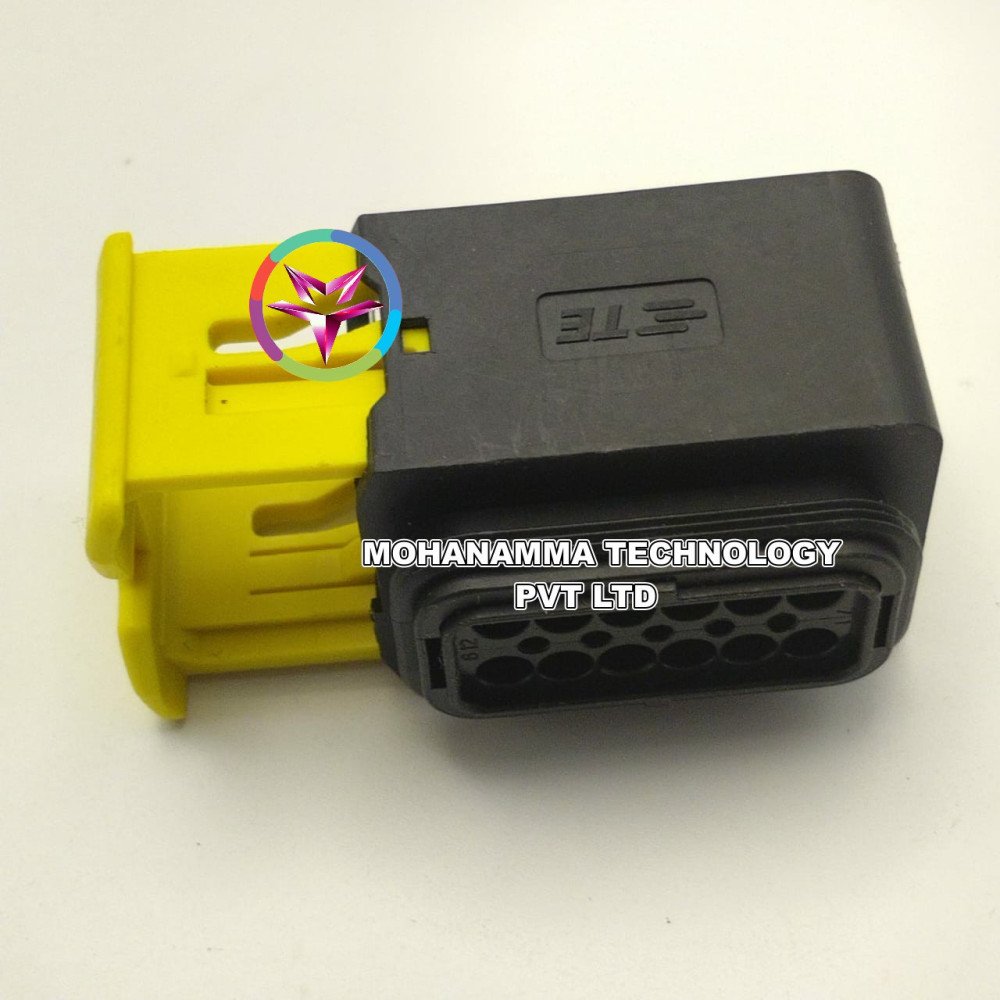

Heavy Duty Sealed Connector

In stock

TE Connectivity 1-1703639-1

SKU: 1-1703639-1

Category: Automotive Connectors

Availability: 1000

0.00/5 (0 Review)

₹ 327.99

Tag: te connectivity , automotive connectors , housings , 12 position , receptacle (female) , cable mount / free hanging , heavy duty sealed connector , black , wire to wire , without socket contacts , polybutylene terephthalate (pbt)

Quantity:

Total: ₹ 3,279.90

Add to wishlist Add To Compare

Share on:

Description

12 Position Housing, Housing for Female Terminals, Wire-to-Wire, 4 mm [.157 in] Centerline, Sealable, Black, Heavy Duty Sealed Connector Series

Product Specifications

Brand: TE Connectivity

Model Number: 1-1703639-1

Availability: In stock

Product SKU: 1-1703639-1

Minimum order quantity: 10

Maximum order quantity:

Listed date: 27th Jun, 2025

Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
Product:	Housings
Number of Positions:	12 Position
Pitch:	4 mm (0.157 in)
Gender:	Receptacle (Female)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Wire Gauge Max:	16 AWG
Color:	Black
Packaging:	Bulk
Application:	Wire to Wire
Brand:	TE Connectivity
Contact Gender:	Without Socket Contacts
Flammability Rating:	UL 94 V-0
Height:	31.25 mm
Housing Material:	Polybutylene Terephthalate (PBT)
Ingress Protection:	IP67
Length:	54.1 mm
Locking Mechanism:	On the terminal
Maximum Operating Temperature:	+ 140 C
Minimum Operating Temperature:	- 40 C
Mounting Angle:	Straight
Number of Rows:	2 Row
Product Type:	Automotive Connectors
Subcategory:	Automotive Connectors
Type:	Receptacle Housing
Voltage Rating:	42 VDC
Width:	25.7 mm
Wire Gauge Range:	16 AWG
Unit Weight:	20 g
