PCT-62 (6-2 Pin) Spring Lever Wire Connector | 2 In 6 Out |

In stock

PCT-62 WIRE TO WIRE

SKU: PCT-62 WIRE TO WIRE

Category: Automotive Connectors

Availability: 1000

0.00/5 (0 Review)

₹ 87.91

, , , , , , , , , , , , , , , , , Tag: pct-62 6-2 pin connector spring lever connector wire splicing connector electrical connector push-in connector compact wire connector tool-free connector nylon pa66 housing 2 in 6 out connector terminal block quick connect terminal reusable connector distribution connector 250v 32a connector lever type connector wago alternative wire joiner

Quantity:

Total: ₹ 4,395.50

Add to wishlist Add To Compare

Share on:

Description

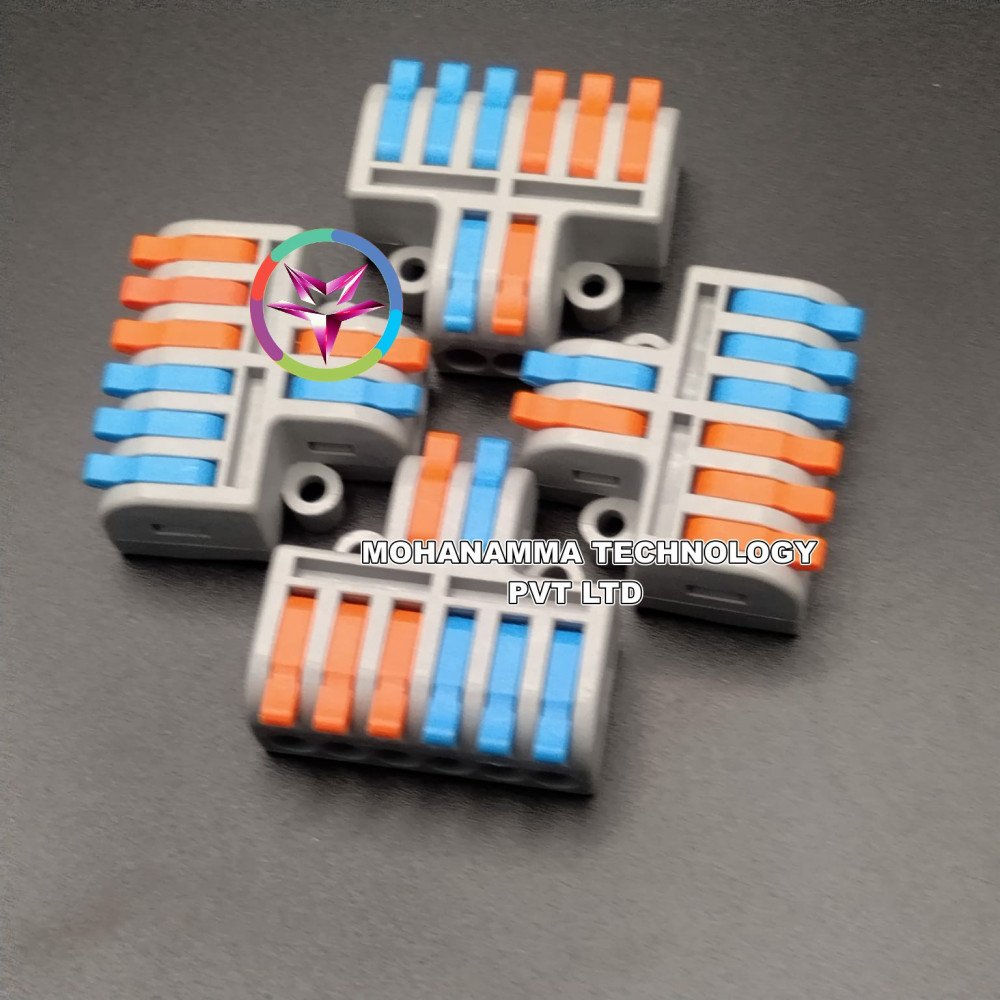

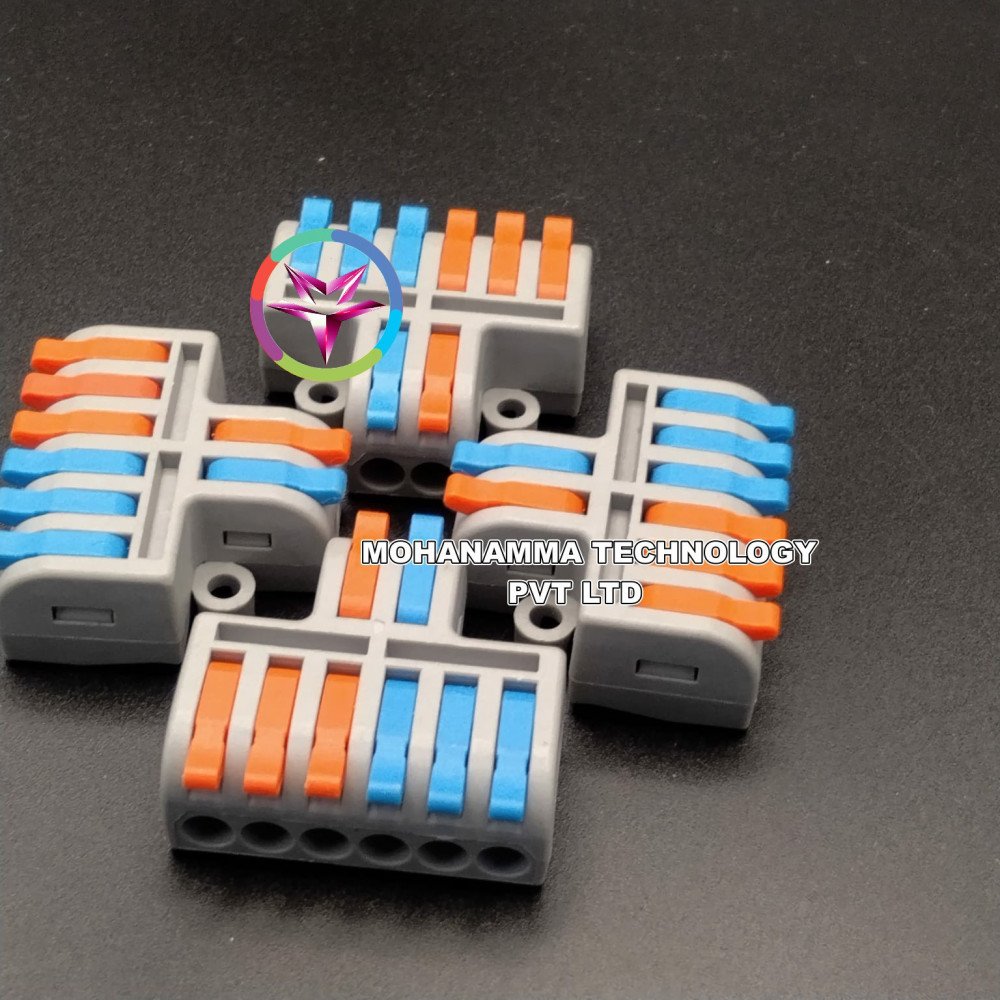

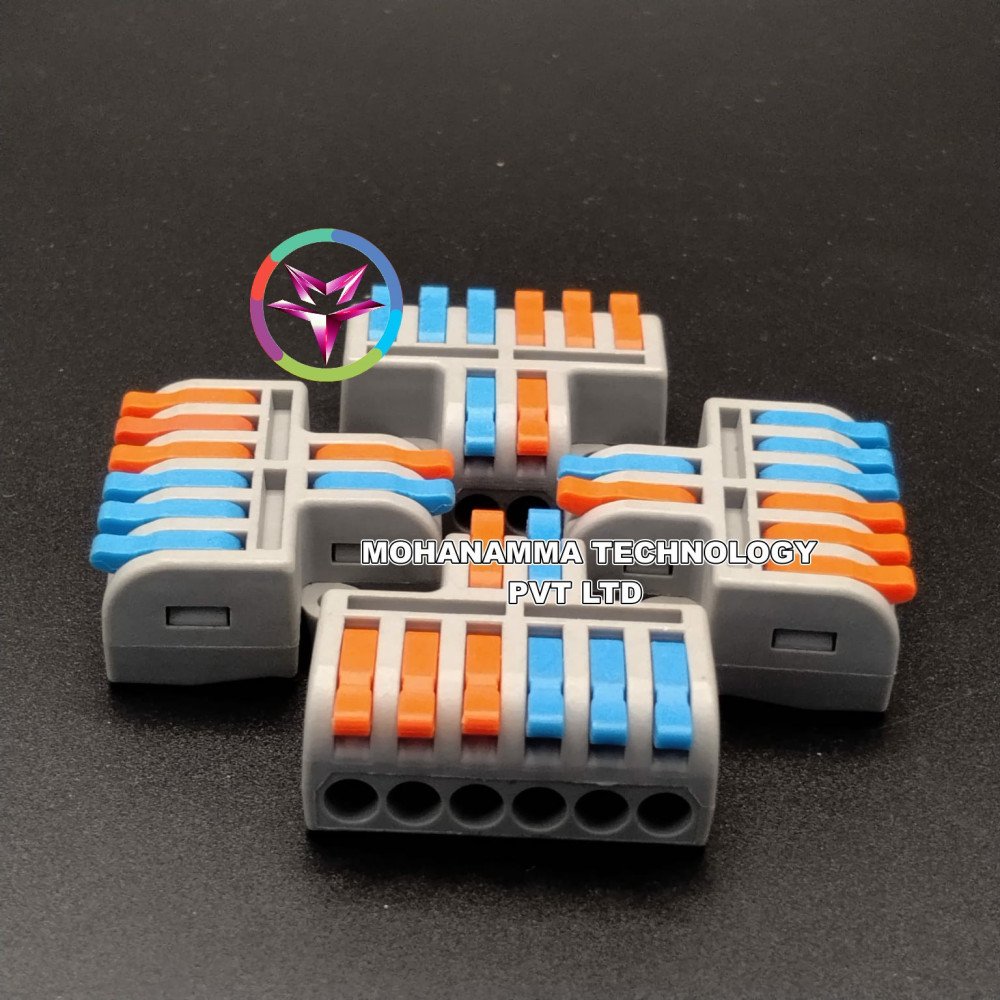

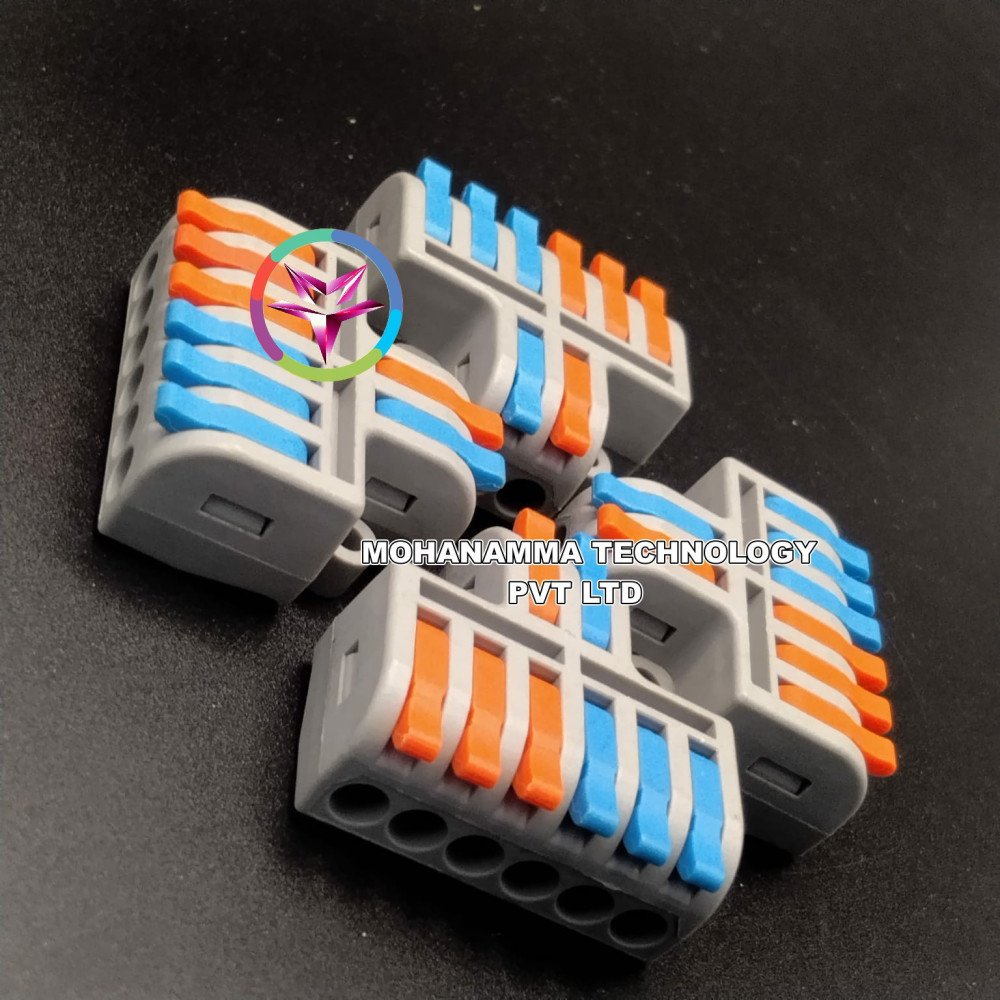

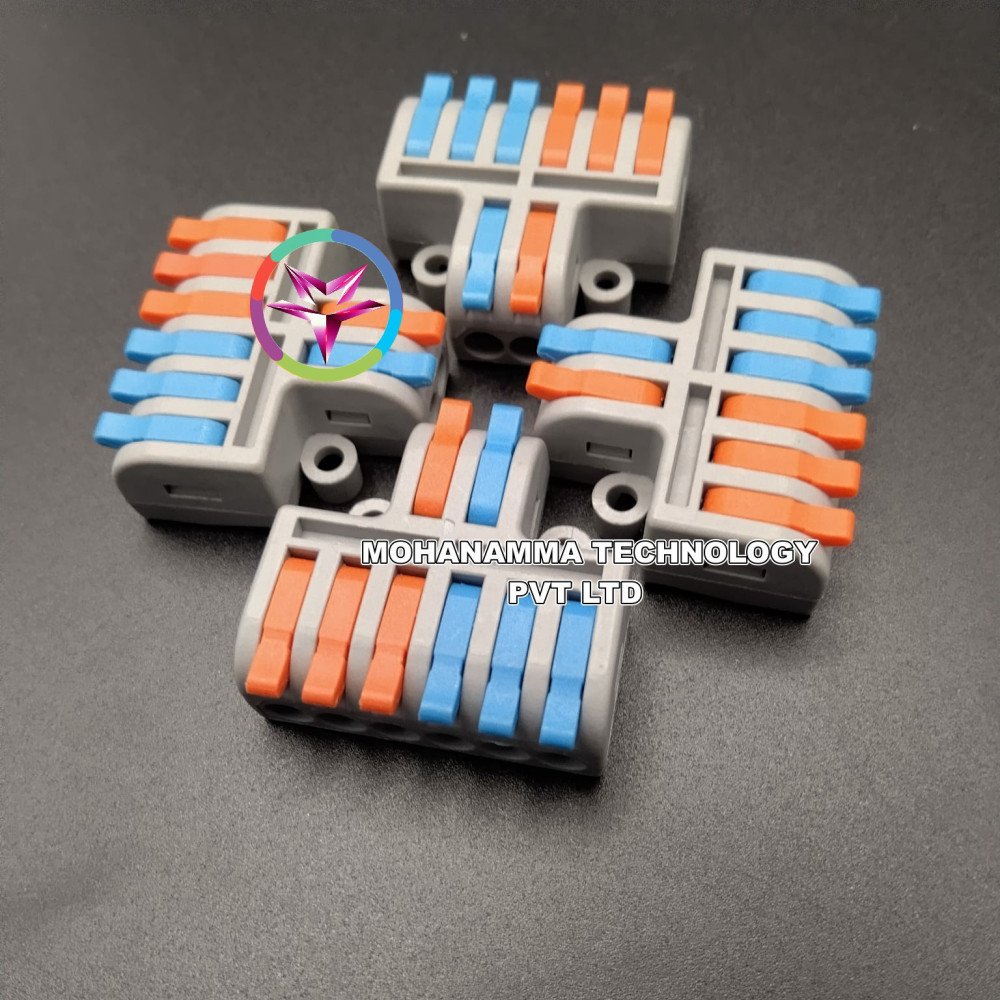

The PCT‑62 (6‑2 pin) is a compact, spring‑lever splicing connector engineered to join six conductors to two with ease. Featuring a robust nylon (PA66) housing and stainless steel contacts, it accommodates a variety of wire types, including fine-stranded up to 2.5 mm² and solid up to 4 mm² (AWG 28–12). Rated for 250 V and up to 32 A continuous current (peaking at 7 kW), this distributor block offers tool-free assembly via color-coded levers and dual-side test ports—ideal for dense distribution environments. Its compact footprint (≈40 × 30 × 13 mm) and intuitive lever operation ensure quick, reliable connections in electrical installations.

Product Specifications

Brand: Hirose Connector

Model Number: PCT-62

Availability: In stock

Product SKU: PCT-62 WIRE TO WIRE

Minimum order quantity: 50

Maximum order quantity:

Listed date: 22nd Jul, 2025

Feature	Specification
Connector Type	Spring-Lever Splice Connector
Input/Output Poles	2 inputs → 6 outputs
Voltage Rating	250 V AC (4 kV impulse)
Current Rating	32 A / 7 kW max
Wire Size (Solid/Str):	0.08 – 4.0 mm² / AWG 28–12
Wire Size (Fine-Str):	0.08 – 2.5 mm² / AWG 28–14
Housing Material	Nylon PA66 (flame‑retardant)
Contact Material	Stainless steel
Dimensions	~40 × 30 × 13.5 mm
Weight	~13 g
Operating Temp.	−20 °C to +80 °C (85 °C peak)
Special Features	Tool-free levers, test slots, transparent housing

Pdf Specifications

download file
