SKU: -
Category: Automotive Connectors
Availability: 0
Tag: automotive connectors 3 way dt plug , dt06-3s-p006 3 position housing , automotive housings , housing for female terminals , component-to-wire , 8.66 mm [.341 in] centerline , te connectivity / deutsch , cable mount / free hanging , socket (female) , plug (male) , integrated in housing
Brand: Deutsch

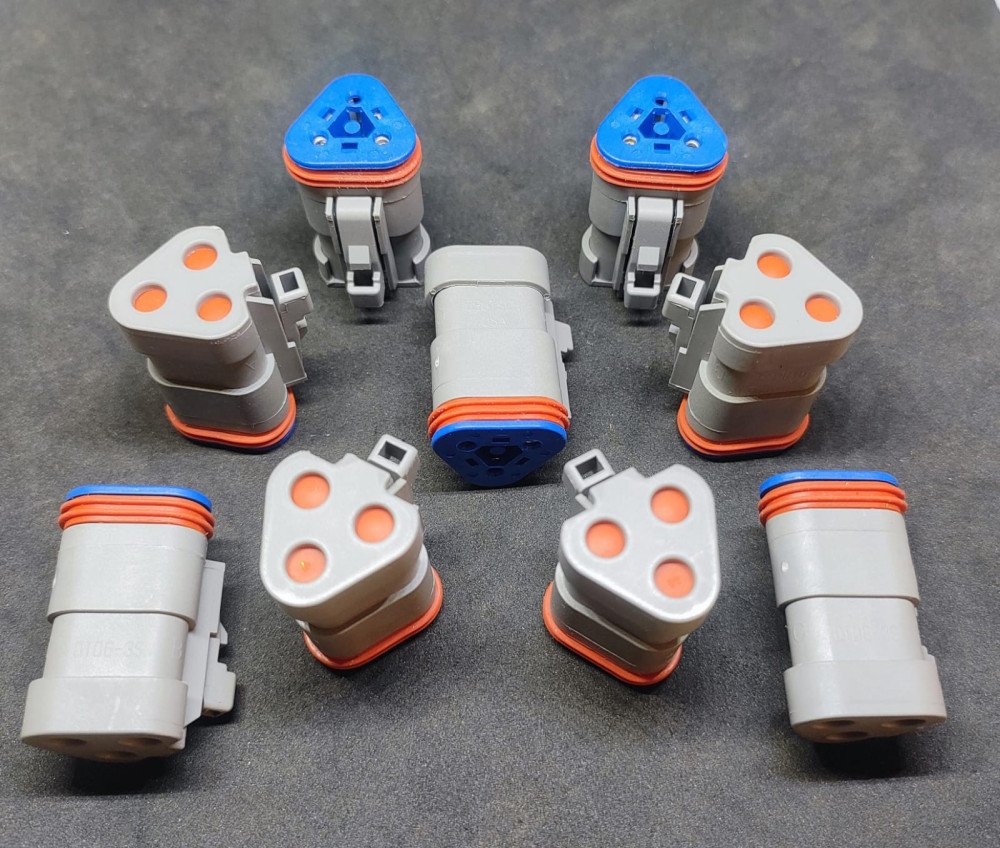

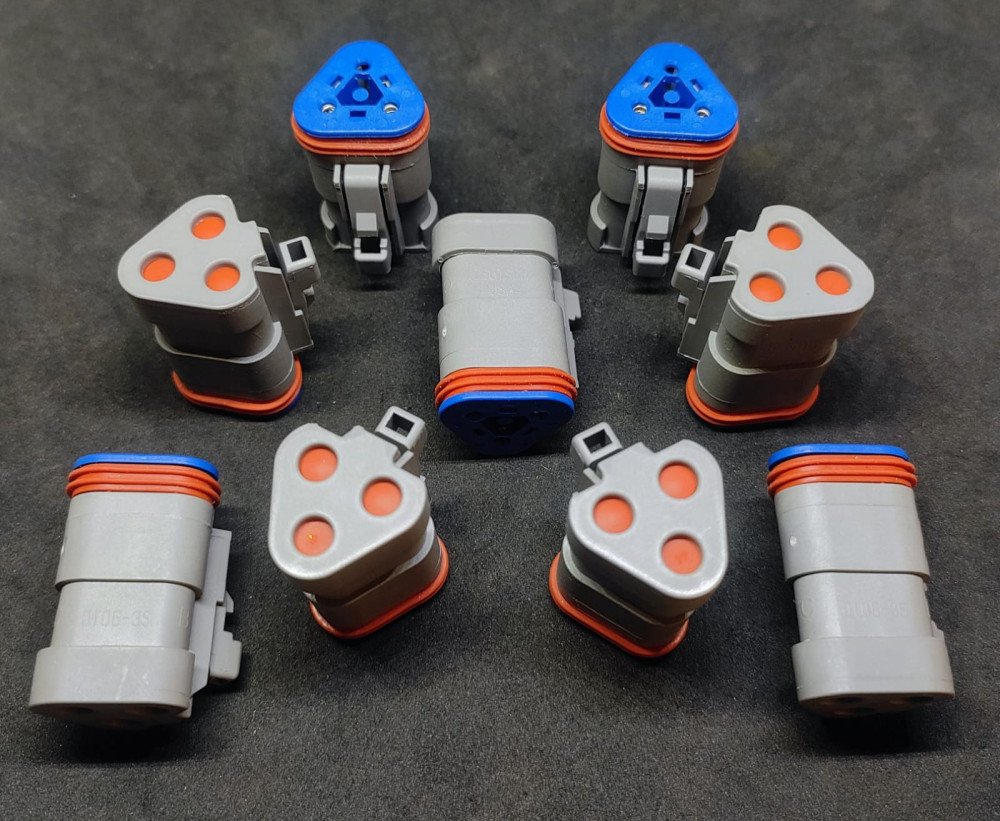

Model Number: DT06-3S-P006
Availability: Out Of Stock.
Product SKU:
Minimum order quantity: 1
Maximum order quantity:
Listed date: 20th Mar, 2025
| TE Connectivity | |
| Product Category: | Automotive Connectors |
| Connectors | |
| 3 Position | |
| 10.01 mm (0.394 in) | |
| Plug (Male) | |
| Cable Mount / Free Hanging | |
| Crimp | |
| 20 AWG | |
| 14 AWG | |
| Gray | |
| Bulk | |
| Application: | Wire to Board/Device |
| Attachment Hole Diameter: | 1.5 mm |
| Brand: | TE Connectivity / DEUTSCH |
| Contact Gender: | Socket (Female) |
| Current Rating: | 13 A |
| Dimensions: | 18.37 mm x 23.73 mm x 28.4 mm |
| Height: | 23.73 mm |
| Housing Gender: | Plug (Male) |
| Housing Material: | Polyamide (PA) |
| Ingress Protection: | IP68, IP6K9K |
| Insulation: | Insulated |
| Length: | 28.4 mm |
| Locking Mechanism: | Integrated in Housing |
| Material: | Plastic |
| Mating Gender: | Plug |
| Mating Part Number: | DT04-3P |
| Maximum Operating Temperature: | + 125 C |
| Minimum Operating Temperature: | - 55 C |
| Mounting Angle: | Straight |
| Product Type: | Automotive Connectors |
| Subcategory: | Automotive Connectors |
| Type: | 3-Way |
| Voltage Rating: | 250 V |
| Width: | 18.37 mm |
| Wire Gauge Range: | 14 AWG to 20 AWG |
| Part # Aliases: | 6-1899776-0 ZPF000000000130249 |
| Unit Weight: | 8 g |
