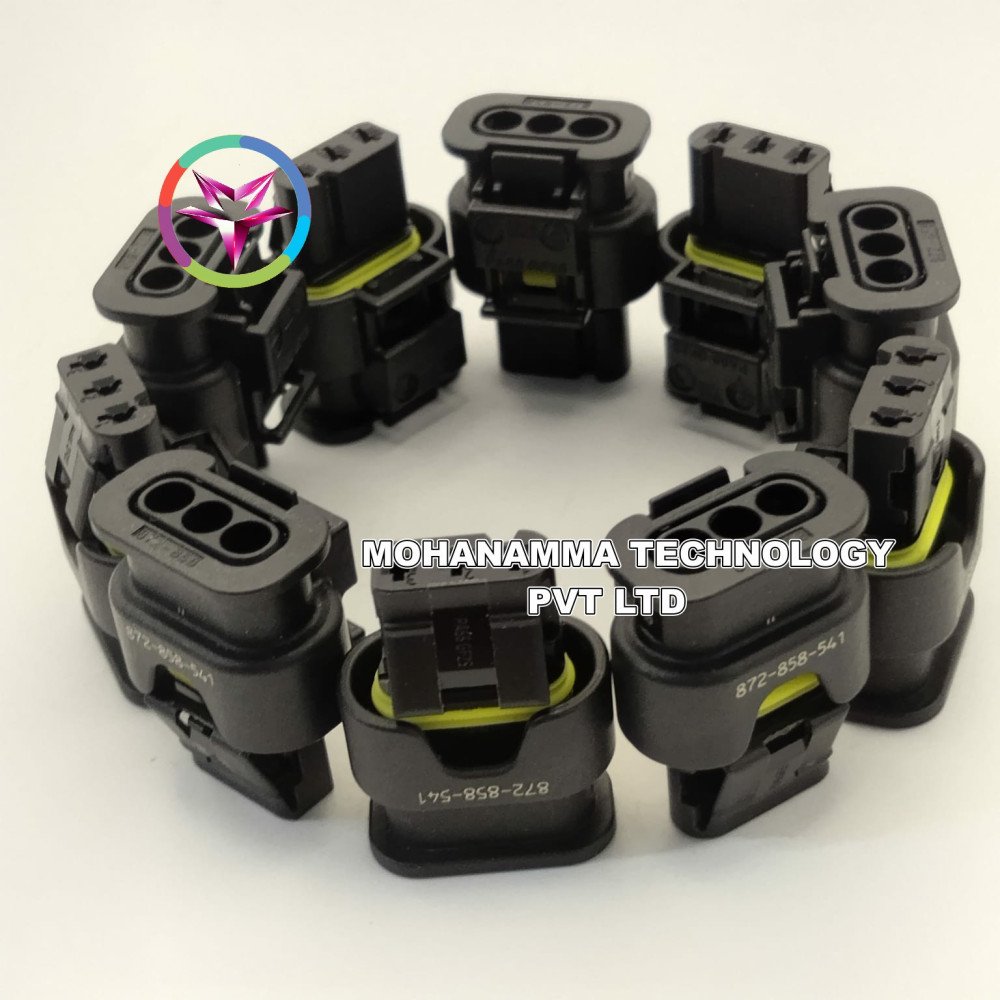

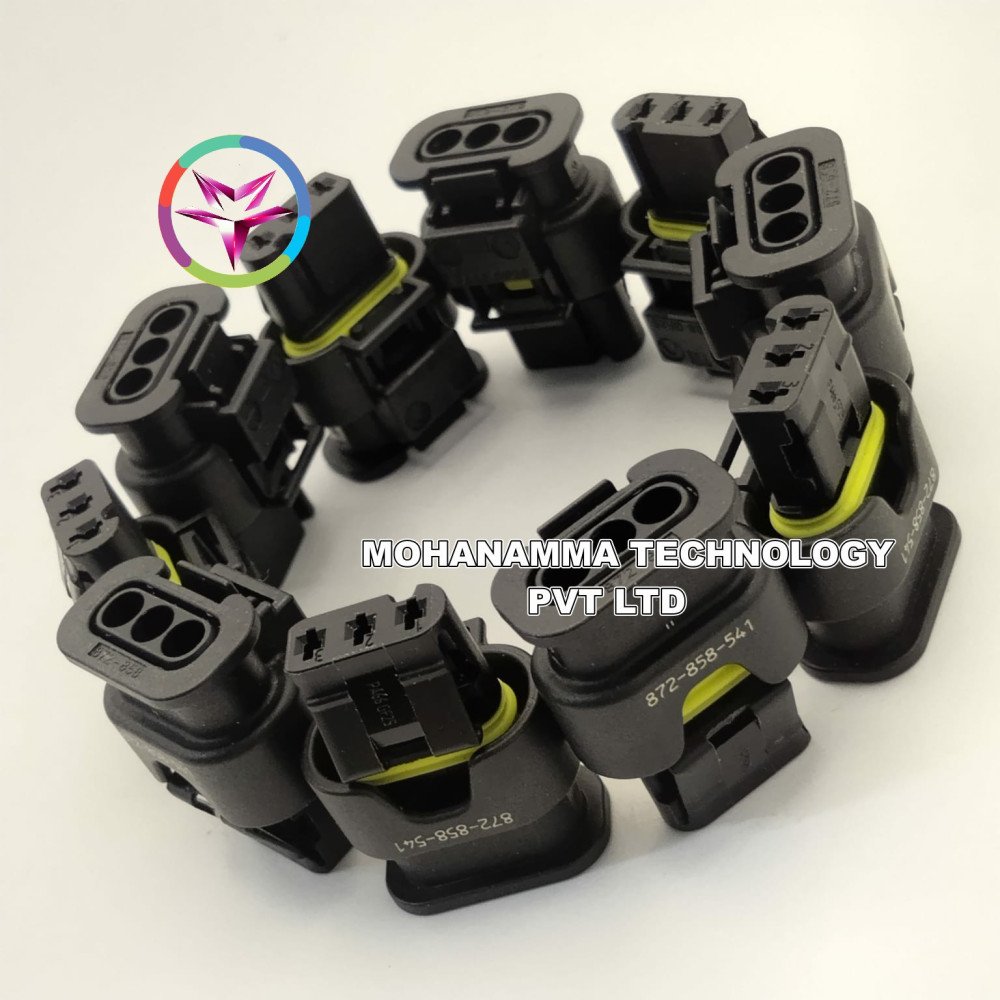

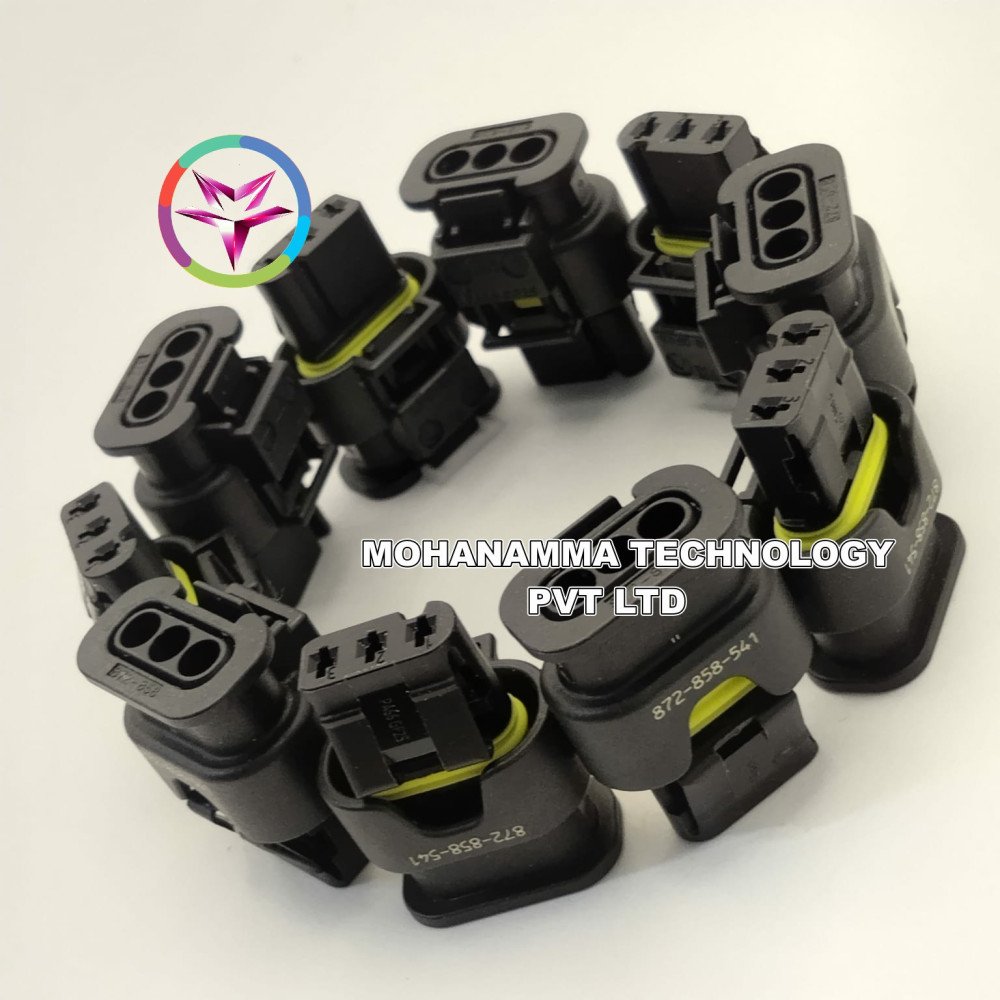

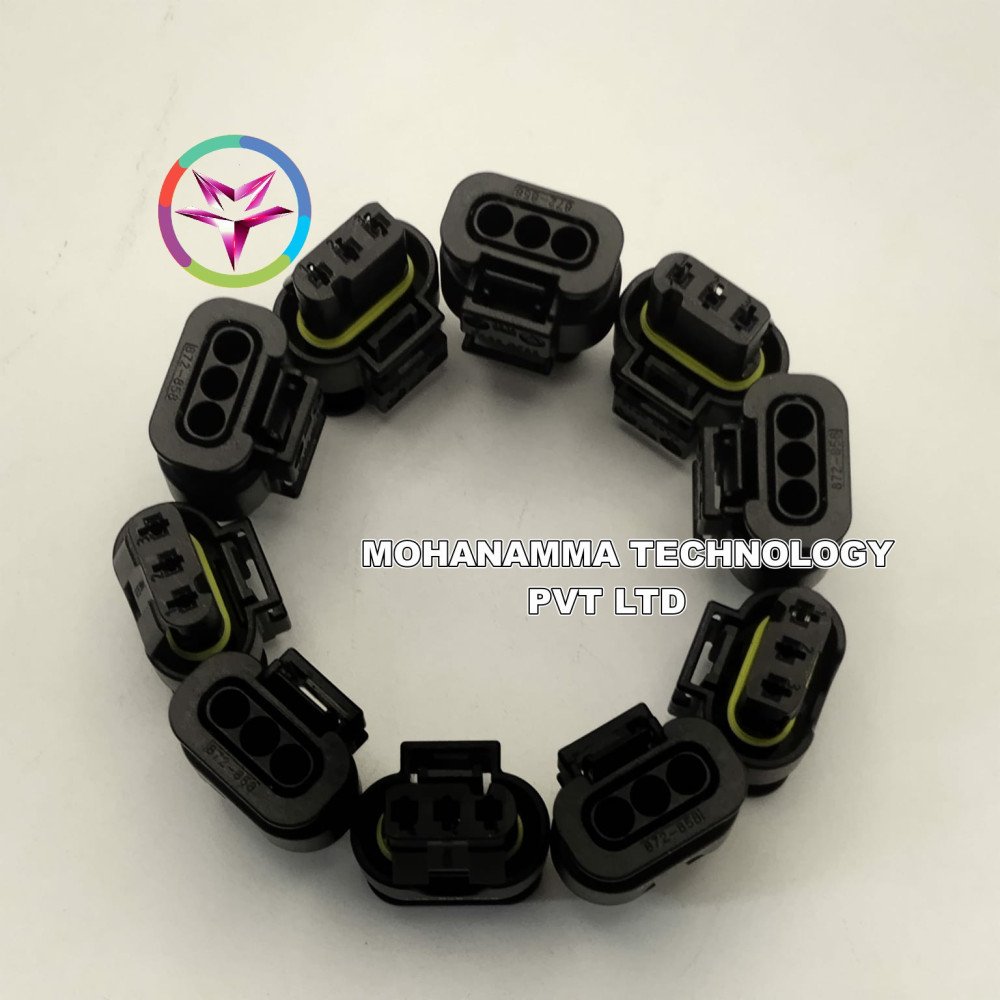

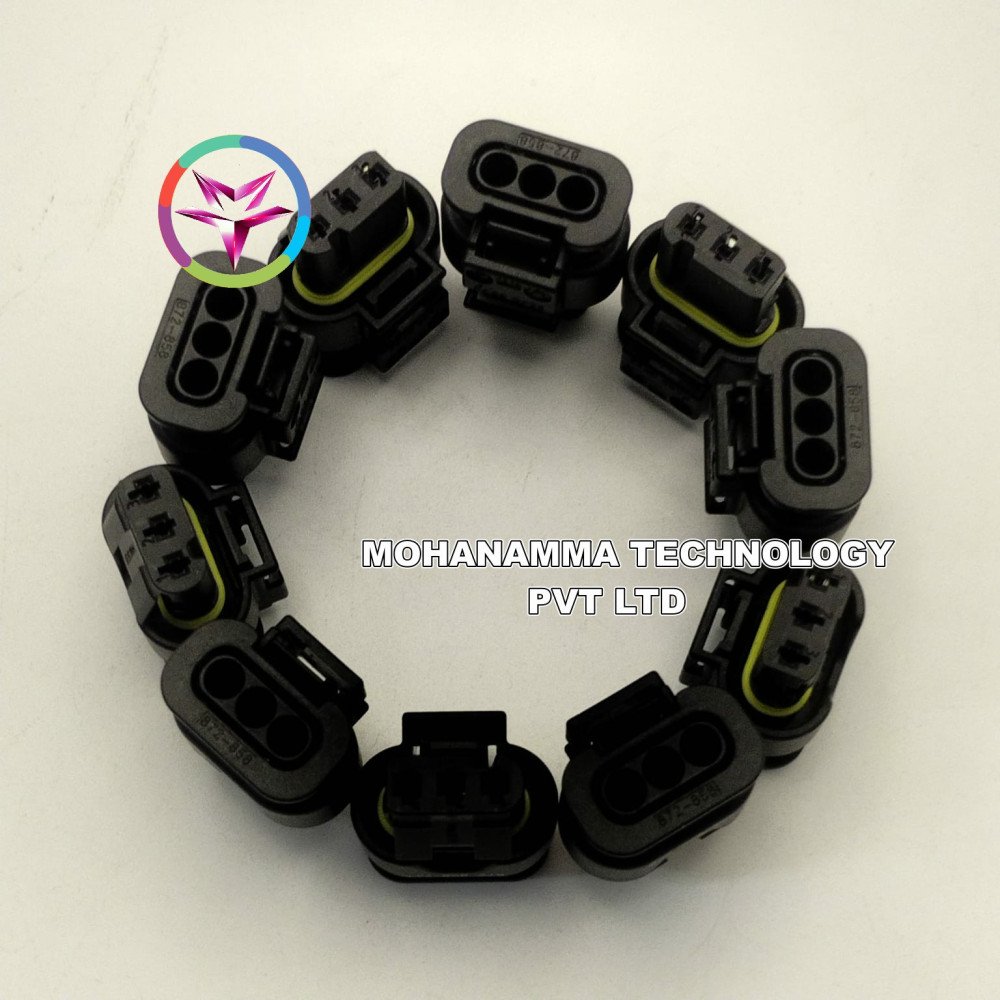

SKU: 872-858-541 3-way connector
Category: Automotive Connectors
Availability: 1000
Tag: connector , 3-way , automotive connector , te connectivity , black , wire to wire , housing , nylon
Brand: Mohanamma Technology
Model Number: 872-858-541
Availability: In stock
Product SKU: 872-858-541 3-way connector
Minimum order quantity: 50
Maximum order quantity:
Listed date: 16th Jul, 2025
| Contact Carrier Color | black |
|---|---|
| Connector Type | Housing for female terminals |
| Connector Position Assurance | without CPA |
| Contact Carrier Material | PA66 GF25 |
| IP-Code | IPX8, IPX9K |
| LV214 | TK3/SG4 |
| Max. Mating/Unmating Force | ≤ 80 N |
| Number of Terminal Rows | 1 row |
| Number of Pins | 3way |
| Center Line of Terminals | 4.0 mm² |
| Sealed Application | sealed |
| Compatible Terminal System | Kostal MLK 1.2-Sm: DOC00072546, Kostal MLK 1.2-Sm: DOC00079128, TE MCON 1.2 LL: C-1452674 |
| Terminal Blade Size | 1.2 mm |
| Type of Compatible Terminal | Locking Lance (LL) |
| Terminal Position Assurance | with TPA Latch |
| USCAR2 | T3/V3/S2 V S3 |
| Voltage Class | ≤ 60 V |
| Wire Size Range | max. 1.0 mm² |
