SKU: 805-123-552 HIRSCHMAN AUTOMOTIVE CONNECTOR
Category: Automotive Connectors
Availability: 1000
Tag: 805-123-552 , hirschmann connector , 5-way connector , 1.2 mm terminal housing , sealstar fa series , sealed female connector , automotive wiring , wire-to-wire connector , cpa locking , ip67 automotive connector , high-temp housing , hirschmann automotive , weatherproof connector , body electronics connector , sensor connector , lighting connector.

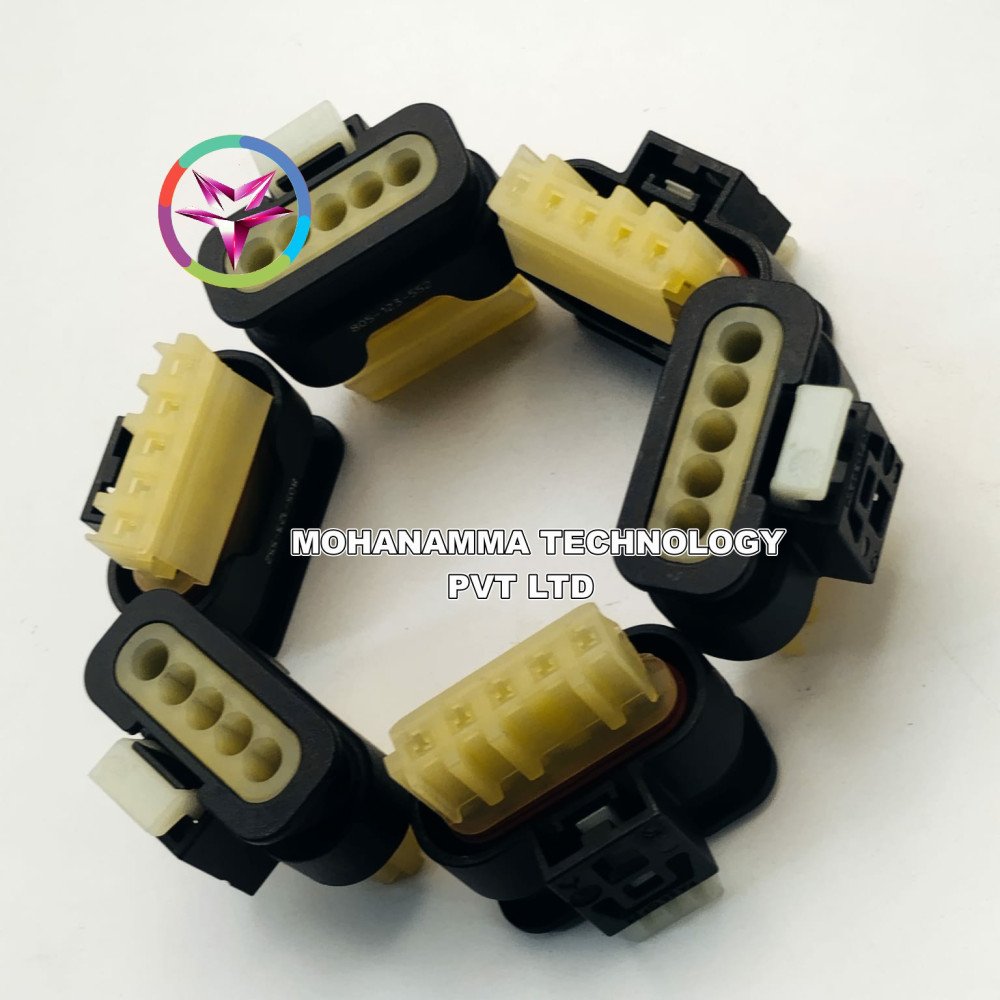

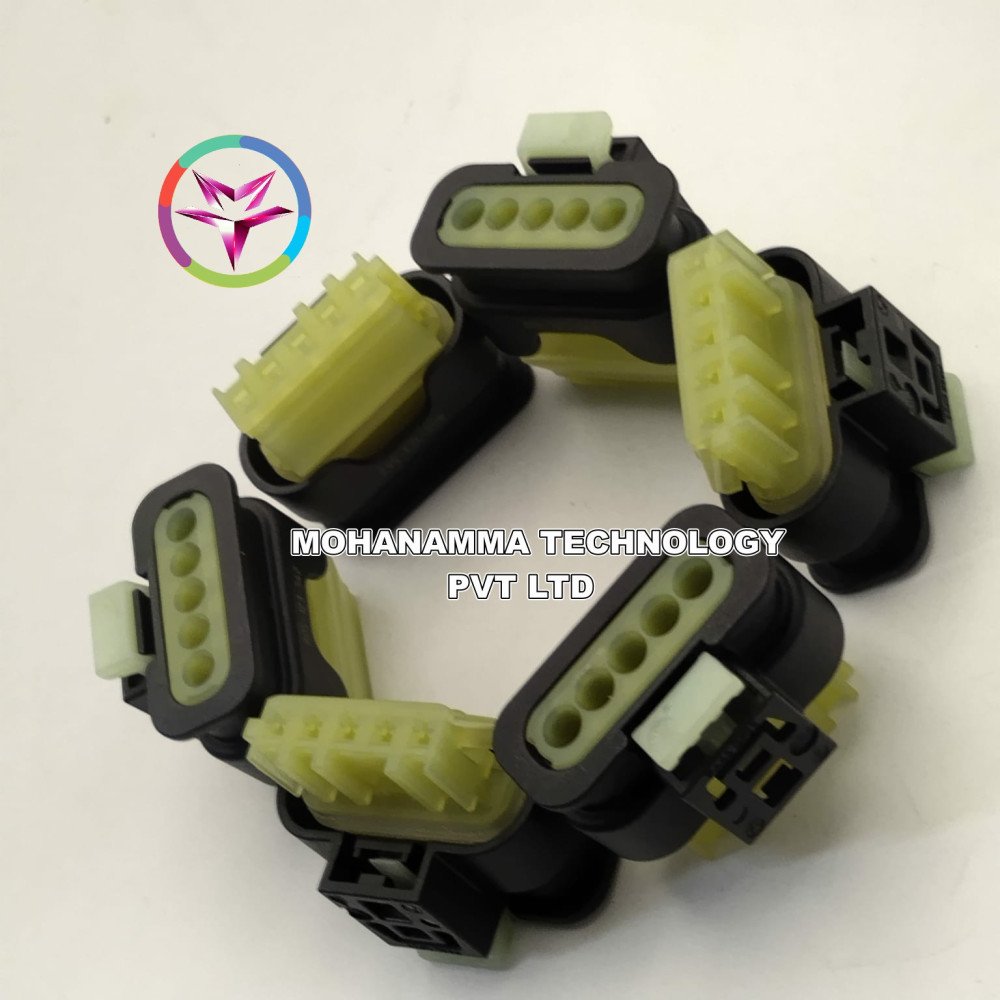

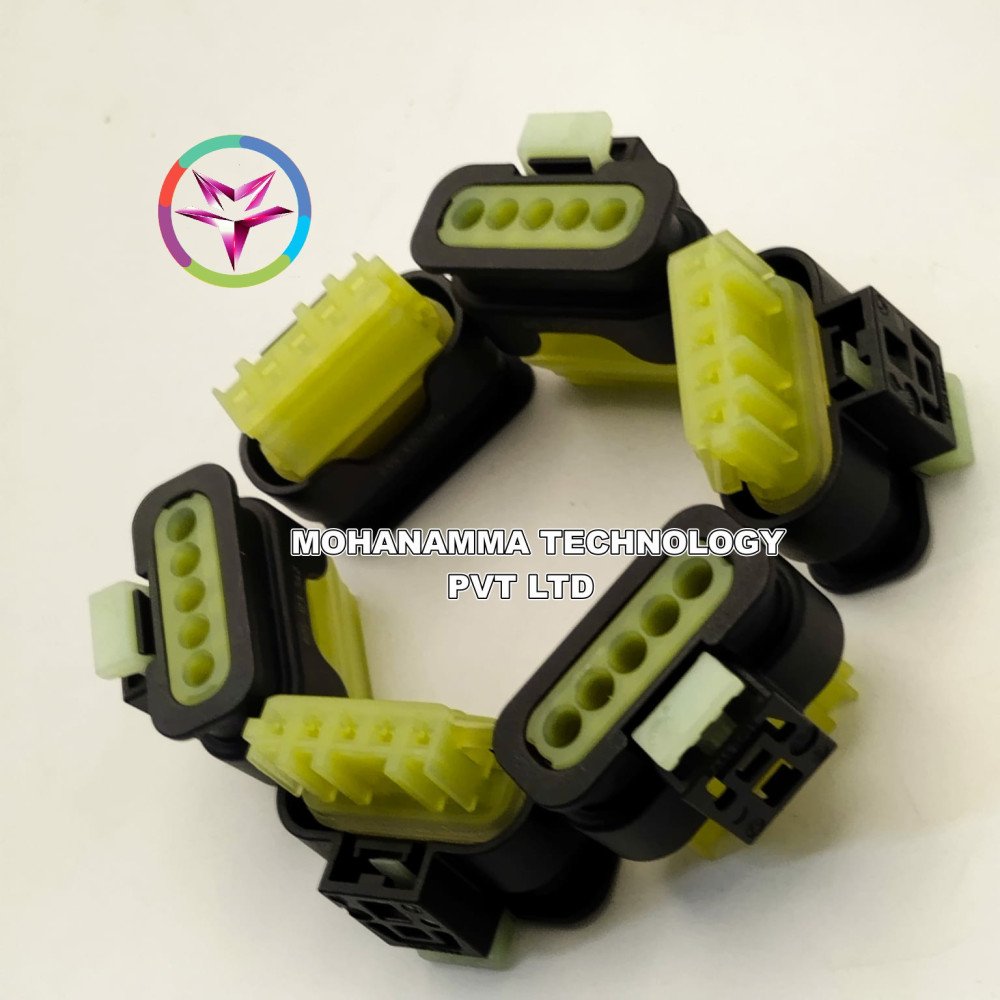

805-123-552 is a 5-way sealed female connector housing from Hirschmann Automotive, part of the 1.2 SealStar FA Series. Designed for use in demanding automotive environments, this connector is optimized for 1.2 mm crimp terminals and provides robust environmental protection through integrated silicone seals and a secure latch-locking mechanism. Its compact size and durable materials make it ideal for sensor, lighting, and body control module connections, ensuring long-term performance even in harsh, high-vibration conditions.
Brand: HIRSCHMAN AUTOMOTIVE
Model Number: 805-123-552
Availability: In stock
Product SKU: 805-123-552 HIRSCHMAN AUTOMOTIVE CONNECTOR
Minimum order quantity: 50
Maximum order quantity:
Listed date: 24th Jul, 2025
| Attribute | Specification |
|---|---|
| Part Number | 805-123-552 |
| Manufacturer | Hirschmann Automotive |
| Series | 1.2 SealStar FA |
| Connector Type | Female Housing |
| Number of Positions | 5 |
| Terminal Size | 1.2 mm |
| Contact Type | Receptacle (Female) |
| Connector System | Wire-to-Wire |
| Sealing | Yes (with integrated silicone seal) |
| Keying | Keyed (varies by variant) |
| Locking Feature | CPA (Connector Position Assurance) + Primary Latch |
| Mounting Type | Free Hanging (In-Line) |
| Housing Material | High-temperature resistant thermoplastic |
| Housing Color | Typically Black (varies) |
| Wire Size Range | 0.35 – 1.0 mm² |
| Operating Temperature | -40°C to +125°C |
| Ingress Protection | IP67 (when mated) |
| Mating Part | Corresponding 3-way SealStar FA male connector |
| Application | Automotive sensors, lighting, ECUs, body electronics |
| Compliance | RoHS compliant, ISO/TS automotive standard |
